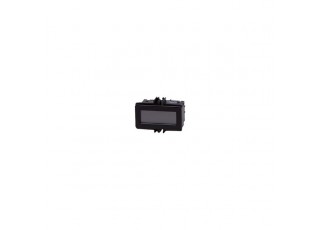

E89150 - ecomat200-LC-DISPLAY
- Brand:IFM ELECTRONIC
- Product Code: E89150
- Availability: Out Of Stock
- Reliable monitoring of sensors with analogue standard signals
- Easy scaling of the displayed value range via potentiometer
- Clearly visible LCD display
- Direct supply from the current loop of the analogue output
- Dust-tight and hose-water proof installation in control panels
Product characteristics
| Housing | housing for panel mounting |
|---|---|
| Dimensions [mm] | 39 x 75 x 54 |
Application
| Application | scalable display for sensors with analogue output |
|---|
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 1 |
|---|
Inputs
| Number of analogue inputs | 1 |
|---|---|
| Analogue input (voltage) [V] | 10...50 |
Operating conditions
| Ambient temperature [°C] | 0...60 |
|---|---|
| Protection | IP 65; (mounted with washer) |
Mechanical data
| Weight [g] | 120 |
|---|---|
| Housing | housing for panel mounting |
| Dimensions [mm] | 39 x 75 x 54 |
| Materials | plastics |
Electrical connection
| Connection | terminals: ...2.5 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E89150-00 — 06.03.2003 —
