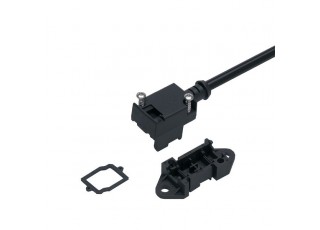

E79995 - ecomat300-FC connector PVC V2A 2m

E79995 - ecomat300-FC connector PVC V2A 2m

  • Brand:IFM ELECTRONIC
  • Product Code: E79995
  • Availability: Out Of Stock
  • For transition from AS-i flat cable to round cable
  • For extending the AS-i network by means of spurs
  • Easy and quick connection due to insulation displacement technology
  • High protection rating for the requirements of harsh industrial environments
Application
Design AS-i
Electrical data
Operating voltage [V] 26.5...31.6 DC
Max. current load total [A] 2
Operating conditions
Ambient temperature [°C] -20...70
Protection IP 67
Mechanical data
Weight [g] 97.4
Materials housing upper part: PUR; housing lower part: PA 6.6; screw: stainless steel (1.4305 / 303)
Remarks
Remarks
The flat cable should not end in the splitter.
Use a flat cable seal or heat-shrink cap for sealing.
Pack quantity 1 pcs.
Electrical connection
Connection Cable: 2 m, PVC, Ø 5.75 mm; 2 x 0.75 mm², PVC
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E79995-00 — 24.05.2023 —
