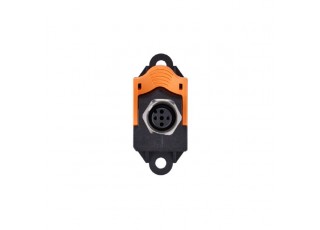

E75471 AS-Interface flat cable insulation displacement connector FC Quick Connect M12 stainless

E75471 AS-Interface flat cable insulation displacement connector FC Quick Connect M12 stainless

  • Brand:IFM ELECTRONIC
  • Product Code: E75471
  • Availability: Out Of Stock
Electrical data
Operating voltage [V] < 42 DC
Protection class III
Max. current load total [A] 4
Operating conditions
Ambient temperature [°C] -25...70
Storage temperature [°C] -25...75
Protection IP 67
Tests / approvals
UL approval
power supply Class 2
Mechanical data
Weight [g] 18.45
Materials housing: PA; O-ring: EPDM; Lock nut: stainless steel (1.4305 / 303); contact pins: bronze tin-plated
Remarks
Remarks
The flat cable must not end in the device.
Pack quantity 1 pcs.
Electrical connection
Connector: M12; coding: A; Tightening torque: 0.4...0.6 Nm
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E75471-00 — 02.05.2022 —
