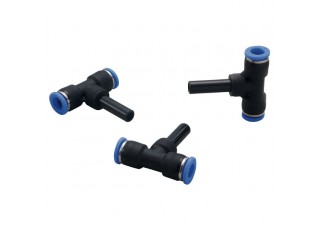

E75227 - ecomat300-AirBox push-in T-connect 10pcs
- Brand:IFM ELECTRONIC
- Product Code: E75227
- Availability: Out Of Stock
- For a reliable pneumatic connection
- Easy and quick installation in an AirBox
Application
| Media | compressed air according to ISO 8573-1: 2001 |
|---|
Operating conditions
| Operating pressure [bar] | 10; (min. -0,95) |
|---|---|
| Ambient temperature [°C] | -20...80 |
Mechanical data
| Weight [g] | 120.1 |
|---|---|
| Materials | housing: nickel-plated brass / PA66; release ring: polyoxymethylene; Tooth lock washer: stainless steel; form ring: NBR |
| Tube fittings | 8 mm |
| Sleeve diameter [mm] | 8 |
Remarks
| Pack quantity | 10 pcs. |
|---|
