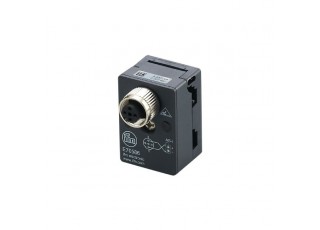

E70586 - ecomat300-FC Splitter AS-i M12 FC bottom
- Brand:IFM ELECTRONIC
- Product Code: E70586
- Availability: Out Of Stock
- For transition from AS-i flat cable to M12 connector
- For extending the AS-i network by means of spurs
- Easy and quick connection due to insulation displacement technology
- High protection rating for the requirements of harsh industrial environments
Electrical data
| Protection class | III |
|---|---|
| Max. current load total [A] | 4 |
Outputs
| Electrical design | AS-i |
|---|
Operating conditions
| Ambient temperature [°C] | -25...75 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 54 |
|---|---|
| Materials | PBT / PC |
| Tightening torque [Nm] | 1.65 |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: M12; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70586-00 — 05.11.2020 —
