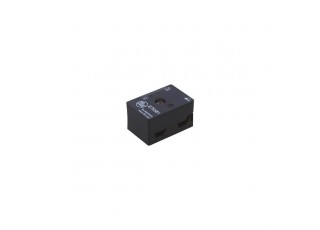

E70581 - FC Splitter AS-i UL

E70581 - FC Splitter AS-i UL

  • Brand:IFM ELECTRONIC
  • Product Code: E70581
  • Availability: Out Of Stock
  • Reliable distribution of the AS-i voltage or the external 24 V supply
  • Easy and quick connection due to insulation displacement technology
  • High protection rating for the requirements of harsh industrial environments
Electrical data
Protection class III
Max. current load total [A] 8
Outputs
Electrical design AS-i
Operating conditions
Ambient temperature [°C] -25...75
Storage temperature [°C] -25...85
Protection IP 67
Mechanical data
Weight [g] 49.6
Materials PBT; screw: stainless steel (1.4305 / 303); contact pins: gold-plated
Tightening torque [Nm] 1.65; (Mounting screw)
Accessories
Accessories (optional)
flat cable end seal:, E70413
heat-shrink cap:, E70113
Remarks
Remarks
The flat cable must not end in the splitter.
Use a flat cable seal or heat-shrink cap for sealing.
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70581-00 — 05.11.2020 —
