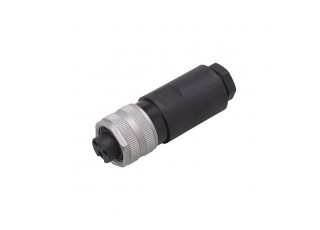

E70170 - ecomat400-SDOGB030MSSFKPG
- Brand:IFM ELECTRONIC
- Product Code: E70170
- Availability: Out Of Stock
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- Wide operating temperature range
- Safe cable connection with screw terminals
Electrical data
| Operating voltage [V] | < 300 AC/DC |
|---|---|
| Max. current load total [A] | 12 |
Operating conditions
| Ambient temperature [°C] | -25...85 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight [g] | 54.2 |
|---|---|
| Dimensions [mm] | 27 x 27 x 83 |
| Moulded-body material | PBT |
| Material nut | diecast zinc |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals: ...1.5 mm²; Cable sheath: Ø 8...10 mm |
Electrical connection - socket
| Connection | Connector: 1 x 7/8", straight; Moulded body: PBT; Locking: diecast zinc |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E70170-02 — 03.12.2021 —
