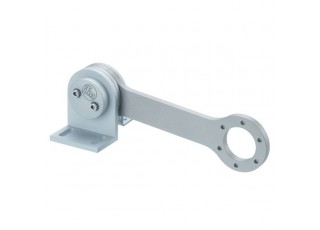

E61446 spring arm for encoders ENCODER SPRING ARM 170
- Brand:IFM ELECTRONIC
- Product Code: E61446
- Availability: Out Of Stock
- For use of encoders in combination with measuring wheels
- Continuously adjustable pretension
- Laser engraved scale as setting aid
- Modular mounting concept
- Allows for damping direction change for upward or downward motions
Application
| Design | for encoder with clamp flange |
|---|
Operating conditions
| Ambient temperature [°C] | -30...60 |
|---|
Mechanical data
| Weight [g] | 717.1 |
|---|---|
| Installation instruction | can be mounted from both sides |
| Dimensions [mm] | 230 x 65.9 x 75 |
| External diameter [mm] | 340 |
| Materials | aluminium anodised; Spring: stainless steel (1.4310 / 301) |
| Tightening torque [Nm] | 4.3 |
| Max. angular displacement [°] | 45 |
| Activation force [N] | 5...20 |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Diagrams and graphs
| Installation instruction | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E61446-00 — 26.11.2020 —
