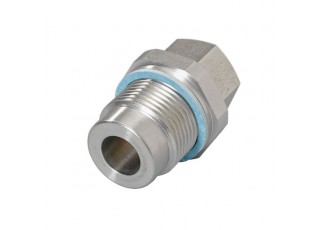

E43004 Clamp fitting for process sensors MOUNTING ADAPTER G1
- Brand:IFM ELECTRONIC
- Product Code: E43004
- Availability: Out Of Stock
- For the installation of capacitive level sensors in containers
- Easy, quick and secure mounting
- User-friendly setting of the requested immersion depth of the sensor
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for capacitive level sensors LK, LI, LT, LL |
|---|---|
| Installation | Clamp fitting |
| Pressure rating [bar] | 0.5 |
Operating conditions
| Ambient temperature [°C] | 0...80 |
|---|
Mechanical data
| Weight [g] | 335 |
|---|---|
| Dimensions [mm] | Ø 39 / L = 57 |
| Materials | flange: stainless steel; Lock nut: stainless steel; spacer: brass; clamping ring: FKM; Sealing: Tesnit |
| Tightening torque [Nm] | 6...9 |
| Sensor connection | Ø 16 mm |
| Process connection | threaded connection G 1 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
