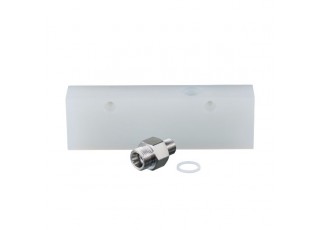

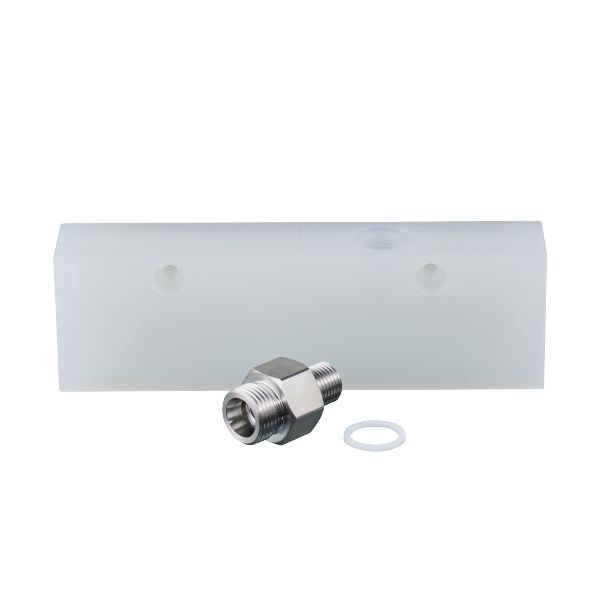

E40460 Process adapter for small volumetric flow quantities ADAPTBLOCK D10 G1/4 PP
- Brand:IFM ELECTRONIC
- Product Code: E40460
- Availability: Out Of Stock
- Reliable detection of small flow rates
- Easy installation of the flow sensor via adapter
- High pressure rating
- Robust design for use in aggressive media
- Suitable for liquids and gases
Application
| Design | for flow sensors SID, SF5 |
|---|---|
| Flow range [l/min] | 0.2...2; ((SI1xxx); 0.2...3 (SI5xxx); factory setting with water) |
| Application | for industrial applications |
| Media | liquids and gases |
| Medium temperature [°C] | -25...60 |
| Pressure rating [bar] | 16 |
Tests / approvals
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
|---|
Mechanical data
| Weight [g] | 324.55 |
|---|---|
| Materials | PP-H |
| Sensor connection | M18 x 1,5 |
| Process connection | G 1/4 |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
