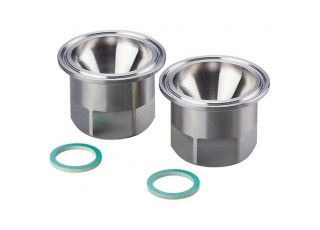

E40252 - efector300-ADAPT G1-CLAMP/D64,0/DIN32676
- Brand:IFM ELECTRONIC
- Product Code: E40252
- Availability: Out Of Stock
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Application
| Design | for flow sensors Typ SM8 |
|---|---|
| Application | for industrial applications; hygienic systems |
| Media | Liquids |
| Pressure rating [bar] | 16 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 834.5 |
|---|---|
| Materials | Adapter: stainless steel (1.4404 / 316L); Gasket: Centellen 23,5 x 30 x 3 mm |
| Sensor connection | G 1 |
| Process connection | Clamp DN50 (2") DIN 32676 (ISO 2852) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 2 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40252-00 — 23.04.2015 —
