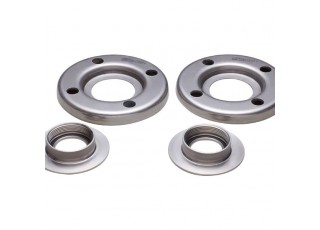

E40240 - efector300-ADAPT G2 FLANGE ADJUSTABLE
- Brand:IFM ELECTRONIC
- Product Code: E40240
- Availability: Out Of Stock
- For the installation of magnetic-inductive flow sensors in pipes
- Easy, quick and secure mounting
- High permissible overload pressure rating
- Requested sealings supplied with the unit
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for flow sensors Typ SM2, SM9 |
|---|---|
| Installation | SM2 SM9 |
| Pressure rating [bar] | 16 |
Mechanical data
| Weight [g] | 2255.5 |
|---|---|
| Type of mounting | Adapter; (rotatable) |
| Materials | flange: stainless steel (1.4301 / 304); Adapter: stainless steel (1.4571/316Ti ); O-ring: EPDM 47,22 x 3,53 mm |
| Sensor connection | G 2 |
| Process connection | flange DN50 according to DIN2642 / EN1092-1 type 2 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 2 pcs. |
|---|
