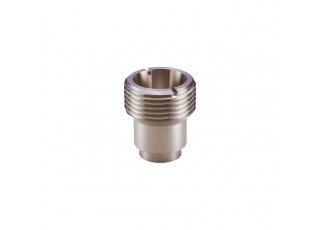

Einschweißadapter für Prozesssensoren E40195 ADAPT SD G1
- Brand:IFM ELECTRONIC
- Product Code: E40195
- Availability: Out Of Stock
- For the installation of compressed air meters in pipes
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for compressed air meters SD |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 111.7 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1 internal thread |
| Process connection | welding adapter Ø 20 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40195-00 — 13.05.2015 —
