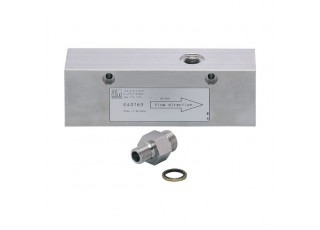

E40163 - efector300-ADAPTBLOCK D22 G3/4
- Brand:IFM ELECTRONIC
- Product Code: E40163
- Availability: Out Of Stock
- For the installation of flow sensors in pipes
- For the precise detection of a defined volumetric flow quantity
- Easy, quick and secure mounting
- Very high, reliable overload pressure rating
- Robust stainless steel design for use in harsh industrial environments
Application
| Design | for flow sensors SID, SF5 |
|---|---|
| Flow range [l/min] | 1...12; ((SI1xxx); 1...16 (SI5xxx); factory setting with water) |
| Application | for industrial applications |
| Media | liquids and gases |
| Pressure rating [bar] | 300 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 1789.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | M18 x 1,5 |
| Process connection | G 3/4 |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
