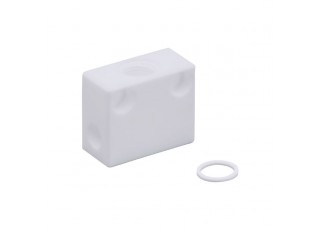

E40159 - efector300-FLOW ADAPT SF PTFE
- Brand:IFM ELECTRONIC
- Product Code: E40159
- Availability: Out Of Stock
- Reliable detection of small flow rates
- Easy installation of the flow sensor via adapter
- High pressure rating
- Robust design for use in aggressive media
- Suitable for liquids and gases
Application
| Design | for flow sensors with ceramic probe G¼ |
|---|---|
| Installation | via internal G1/8A male thread, any mounting position |
| Medium temperature [°C] | 0...80 |
| Pressure rating [bar] | 30 |
Measuring/setting range
| Flow range [ml/min] | 2...50 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 48 |
|---|---|
| Materials | PTFE |
| Sensor connection | G 1/4 |
| Process connection | G 1/8 |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40159-00 — 28.10.2003 —
