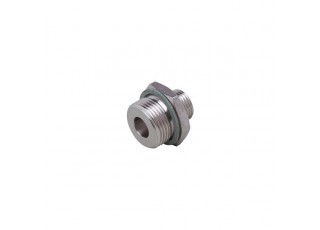

E40134 - efector300-ADAPT /SI/9/ /G3/4
- Brand:IFM ELECTRONIC
- Product Code: E40134
- Availability: Out Of Stock
- For the installation of flow and temperature sensors in containers and pipes
- Easy, quick and secure mounting
- Suitable for liquids and gases
- Very high, reliable overload pressure rating
- Robust stainless steel design for use in harsh industrial environments
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
| Pressure rating [bar] | 100 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 88.4 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | M18 x 1,5 internal thread |
| Process connection | threaded connection G 3/4 external thread |
| Insertion depth [mm] | 21; (measuring probe SID, SFD, TN) |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40134-00 — 10.12.2014 —
