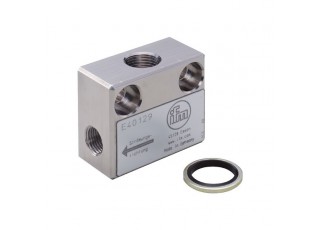

E40129 - efector300-FLOW ADAPT SI
- Brand:IFM ELECTRONIC
- Product Code: E40129
- Availability: Out Of Stock
- Reliable detection of small flow rates
- Easy installation of the flow sensor via adapter
- Very high pressure rating
- Robust stainless steel design for use in harsh industrial environments
- Suitable for liquids and gases
Application
| Design | for flow sensors and flow monitors |
|---|---|
| Application | for industrial applications |
| Installation | via internal G1/8A male thread, any mounting position |
| Media | liquids and gases |
| Medium temperature [°C] | 0...80; (Temperature gradient: 1 K/min) |
| Pressure rating [bar] | 300 |
Measuring/setting range
| Flow range [ml/min] | 2...100 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 156.5 |
|---|---|
| Dimensions [mm] | M12 x 1 |
| Thread designation | M12 x 1 |
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | M12 x 1 |
| Process connection | G 1/8 |
Accessories
| Items supplied |
| ||
|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40129-01 — 06.03.2003 —
