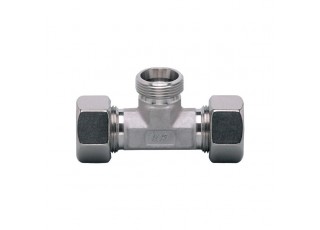

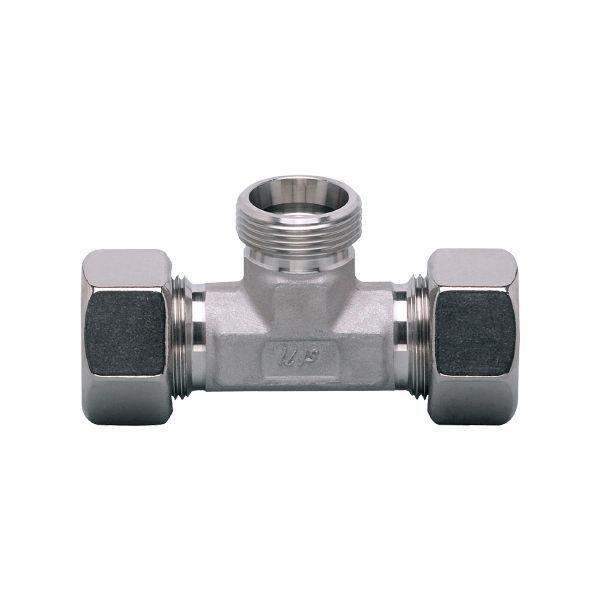

E40078 T-piece with progressive ring fitting T-PIECE QL18-18-18/VA
- Brand:IFM ELECTRONIC
- Product Code: E40078
- Availability: Out Of Stock
- Safe installation of process sensors in pipes
- For use in industrial environments
- Adapter for ensuring the correct immersion depth
- High pressure rating
- Robust stainless steel housing
Application
| Design | for sensors and adapters with process connection M26x1,5 |
|---|---|
| Application | for industrial applications |
| Media | liquids and gases |
| Pressure rating [bar] | 315 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 292.7 |
|---|---|
| Type of mounting | Recommendation: precision steel pipes 18 x 1,5 DIN 2391/ISO 3304 |
| Materials | stainless steel (1.4571/316Ti ) |
| Sensor connection | M26 x 1,5 |
| Process connection | Ø 18 mm |
Accessories
| Accessories (optional) |
|
|---|
Remarks
| Remarks |
| ||
|---|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E40078-00 — 10.11.2014 —
