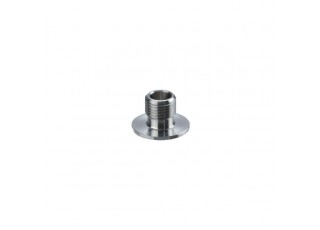

E38830 Welding adapter for process sensors ADAPT, D3/ZERO VOID/FLAT/T=1.25
- Brand:IFM ELECTRONIC
- Product Code: E38830
- Availability: Out Of Stock
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
Application
| Pressure rating [bar] | 120 | |
|---|---|---|
| Note on pressure rating |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 8.2 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/8 internal thread Ø 3 mm |
| Process connection | welding adapter Ø 18 mm ; pipe wall thickness: 1,25 mm |
| Surface characteristics Ra/Rz of the wetted parts | < 0.4 / - |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E38830-00 — 19.08.2021 —
