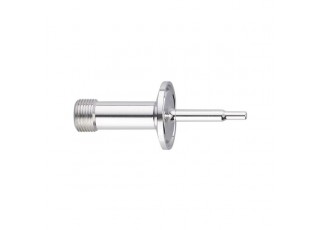

E38795 Thermowell for temperature sensors THERMOWELL, D3/DIN10/15/20 CLAMP/EL=38
- Brand:IFM ELECTRONIC
- Product Code: E38795
- Availability: Out Of Stock
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- High pressure rating
- Simple process connection via adapter
- Hygienic design for the requirements of the food and beverage industry
Application
| Design | for temperature sensors EL = 83 mm |
|---|---|
| Pressure rating [bar] | 25 |
Mechanical data
| Weight [g] | 70 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 3/8 internal thread Ø 3 mm |
| Process connection | Clamp DN10...DN20 (1/2...3/4") DIN 32676 (ISO 2852) |
| Surface characteristics Ra/Rz of the wetted parts | < 0.4 / - |
| Installation length EL [mm] | 38 |
| Bore length BL [mm] | 83 |
Remarks
| Pack quantity | 1 pcs. |
|---|
