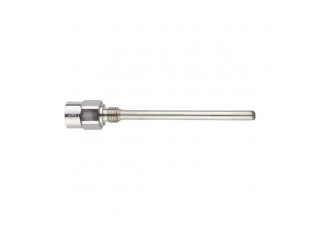

E37720 - THERMOWELL, D6/ G1/4 /L=150
- Brand:IFM ELECTRONIC
- Product Code: E37720
- Availability: Out Of Stock
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- High pressure rating
- Simple process connection via adapter
- Robust stainless steel housing for the requirements of harsh industrial environments
Application
| Design | for temperature sensors EL = 150 mm | |
|---|---|---|
| Pressure rating [bar] | 100 | |
| Note on pressure rating |
|
Mechanical data
| Weight [g] | 110.8 |
|---|---|
| Materials | stainless steel (1.4571/316Ti ) |
| Sensor connection | G 1/4 Ø 6 mm |
| Process connection | G 1/4 |
| Installation length EL [mm] | 124 |
| Bore length BL [mm] | 150 |
Remarks
| Pack quantity | 1 pcs. |
|---|
