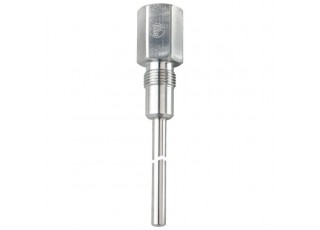

E37521 - efector600- THERMOWELL, D6/ G1/2 conical/L=150
- Brand:IFM ELECTRONIC
- Product Code: E37521
- Availability: Out Of Stock
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- Robust stainless steel housing with high pressure rating
- Simple process connection via adapter
- Hygienic design for the requirements of the food and beverage industry
Application
| Design | for temperature sensors EL = 150 mm |
|---|---|
| Pressure rating [bar] | 16 |
Mechanical data
| Weight [g] | 199.9 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/2 sealing cone Ø 6 mm |
| Process connection | G 1/2 |
| Surface characteristics Ra/Rz of the wetted parts | ≤ 0.6 / - |
| Installation length EL [mm] | 118 |
| Bore length BL [mm] | 187 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E37521-00 — 15.09.2014 —
