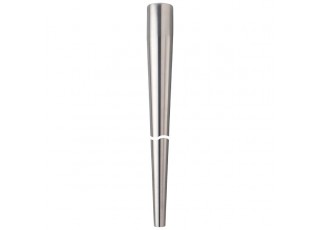

E37430 - efector600-THERMOWELL, D6/WELD-IN/L=230
- Brand:IFM ELECTRONIC
- Product Code: E37430
- Availability: Out Of Stock
- Reliable protection against aggressive media and high flow velocities
- Allows the replacement of the temperature sensor in a running process
- Particularly high pressure rating
- Hygienic design for the requirements of the food and beverage industry
- Robust stainless steel housing for use in harsh industrial environments
Application
| Design | for temperature sensors EL = 300 mm |
|---|---|
| Pressure rating [bar] | 400 |
Accuracy / deviations
| Max. permissible flow velocity [m/s] | 25 |
|---|
Mechanical data
| Weight [g] | 1236 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | 1/2" NPS Ø 6 mm suitable for G1/2 and 1/2" NPT |
| Process connection | welding adapter Ø 38,1 mm |
| Installation length EL [mm] | 191 |
| Bore length BL [mm] | 228.6 |
Remarks
| Pack quantity | 1 pcs. |
|---|
