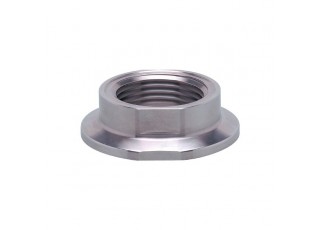

E33701 - efector500-ADAPT IFM-CLAMP ISO2852 1-1.5″
- Brand:IFM ELECTRONIC
- Product Code: E33701
- Availability: Out Of Stock
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Application
| Pressure rating [bar] | 16 |
|---|---|
| MAWP (for applications according to CRN) [bar] | 16 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 101 |
|---|---|
| Materials (wetted parts) | stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4 |
| Sensor connection | G 1 Aseptoflex Vario |
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
| Sealing | metal to metal |
| Hygienic equipment class to DIN 11866 | H4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
