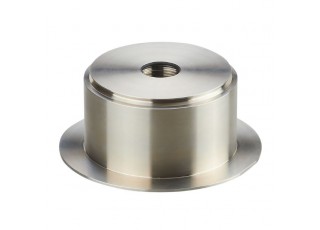

E33434 Mounting adapter for process sensors ADAPT IFM-TANK SPUD AV

E33434 Mounting adapter for process sensors ADAPT IFM-TANK SPUD AV

  • Brand:IFM ELECTRONIC
  • Product Code: E33434
  • Availability: Out Of Stock
  • For installing process sensors in tanks
  • Easy, quick and secure mounting
  • Particularly suited for use in hygienic applications
  • Stainless steel adapter for the requirements of the food and beverage industry
  • High pressure rating
Application
Design accessories for, PY200x, PM17xx, PI27xx, PG27xx, : Rosemount 1199 (SSW) Tank Spud Seal
Pressure rating [bar] 34
Tests / approvals
Pressure Equipment Directive A possible classification to PED depends on the application and has to be carried out by the user / operator.
Pressure Equipment Directive EAC The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.
Safety instructions The compatibility between medium and product material has to be checked in all applications.
Mechanical data
Weight [g] 1602
Materials (wetted parts) stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4; O-rings: EPDM
Sensor connection G 1 Aseptoflex Vario
Process connection Tank Spud Rosemount 1199 (SSW) Tank Spud Seal
Sealing Gasket
Hygienic equipment class to DIN 11866 H4
Accessories
Items supplied
O-ring: 1 x 24 x 2, EPDM, FDA compliant, E30054
Accessories (optional)
O-ring: 24 x 2, FKM, FDA compliant, E30123
sealing ring:, PEEK, FDA compliant, E30124
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33434-00 — 12.08.2019 —
