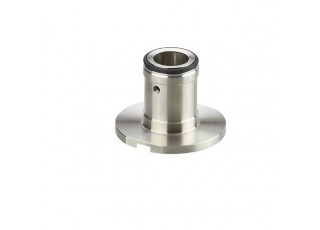

E33405 - efector160-ADAPT G1/2 - 3A/DN38
- Brand:IFM ELECTRONIC
- Product Code: E33405
- Availability: Out Of Stock
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Particularly suited for use in hygienic applications
- Stainless steel adapter for the requirements of the food and beverage industry
- High pressure rating
Application
| Pressure rating [bar] | 25 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 142.5 |
|---|---|
| Materials | stainless steel (1.4404 / 316L) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | Clamp DN38 (1,5") |
| Surface characteristics Ra/Rz of the wetted parts | < 0.8 / 8 |
| Sealing | metal to PEEK |
| Hygienic equipment class to DIN 11866 | H3 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
