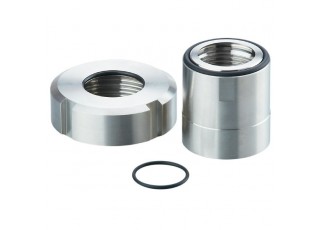

E33349 universal process adapter ADAPT UNI RD52

E33349 universal process adapter ADAPT UNI RD52

  • Brand:IFM ELECTRONIC
  • Product Code: E33349
  • Availability: Out Of Stock
  • For installing process sensors in tanks
  • Easy, quick and secure mounting
  • Particularly suited for use in hygienic applications
  • Stainless steel adapter for the requirements of the food and beverage industry
  • High pressure rating
Application
Design accessories for, PM17xx: (Endress+Hauser universal process adapter RD52), PY200x: (Endress+Hauser universal process adapter Uni 6" D85)
Pressure rating [bar] 16
Tests / approvals
Pressure Equipment Directive A possible classification to PED depends on the application and has to be carried out by the user / operator.
Pressure Equipment Directive EAC The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.
Safety instructions The compatibility between medium and product material has to be checked in all applications.
Mechanical data
Weight [g] 390.1
Materials (wetted parts) stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
Sensor connection G 1 Aseptoflex Vario
Process connection universal process adapter Rd 52 Endress+Hauser Universal-Prozessadapter RD52; Universal-Prozessadapter Uni 6" D85
Sealing Gasket
Hygienic equipment class to DIN 11866 H4
Accessories
Items supplied
O-ring: 24 x 2, EPDM, FDA compliant, E30054
O-ring: 30 x 2, FKM
O-ring: 36 x 3, EPDM, FDA compliant
Accessories (optional)
O-ring: 24 x 2, FKM, FDA compliant, E30123
sealing ring, PEEK, FDA compliant, E30124
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33349-00 — 13.08.2019 —
