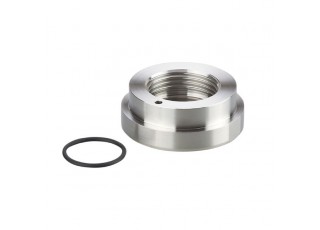

E33302 process adapter pipe fitting DIN 11864 ADAPT DIN11864-1A-BS/DN40

E33302 process adapter pipe fitting DIN 11864 ADAPT DIN11864-1A-BS/DN40

  • Brand:IFM ELECTRONIC
  • Product Code: E33302
  • Availability: Out Of Stock
  • For the installation of process sensors in containers and pipes
  • Easy, quick and secure mounting
  • Particularly suited for use in hygienic applications
  • Stainless steel adapter for the requirements of the food and beverage industry
  • High pressure rating
Application
Design with leakage port
Pressure rating [bar] 25
Tests / approvals
Pressure Equipment Directive A possible classification to PED depends on the application and has to be carried out by the user / operator.
Pressure Equipment Directive EAC The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.
Safety instructions The compatibility between medium and product material has to be checked in all applications.
Mechanical data
Weight [g] 203
Materials (wetted parts) stainless steel (1.4435 / 316L) ; surface characteristics : Ra<0,4 / Rz 4
Sensor connection G 1 Aseptoflex Vario
Process connection Pipe fitting DN40 DIN 11864-1-A-BS
Sealing Gasket
Hygienic equipment class to DIN 11866 H4
Accessories
Items supplied
O-ring: 1 x 24 x 2, EPDM, FDA compliant, E30054
Accessories (optional)
O-ring: 1 x 24 x 2, FKM, FDA compliant, E30123
sealing ring: 1, PEEK, FDA compliant, E30124
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E33302-00 — 26.11.2018 —
