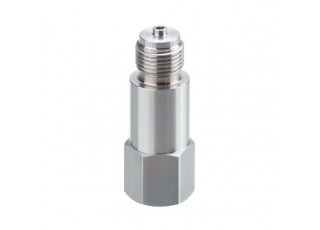

E30507 Screw-in adapter for process sensors GAUGE ADAPTER DIN16281 1.4571
- Brand:IFM ELECTRONIC
- Product Code: E30507
- Availability: Out Of Stock
- Efficient protection against too much heat
Application
| Design | Zwischenstück DIN 16281 - 20 St |
|---|---|
| Application | industrial application |
| Installation | for mounting on an even surface |
| Pressure rating [bar] | 400 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 248 |
|---|---|
| Materials | stainless steel (1.4571/316Ti ) |
| Sensor connection | G 1/2 internal thread |
| Process connection | threaded connection G 1/2 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30507-00 — 23.09.2020 —
