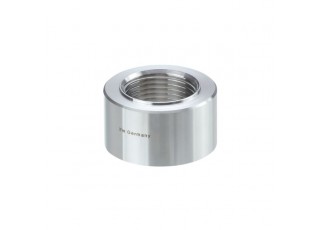

E30498 Welding adapter for process sensors WELDING ADAPT G1 V4A
- Brand:IFM ELECTRONIC
- Product Code: E30498
- Availability: Out Of Stock
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
- High pressure rating
Application
| Design | with leakage port | |
|---|---|---|
| Pressure rating [bar] | 16 | |
| Note on pressure rating |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 312.8 |
|---|---|
| Materials | stainless steel (1.4435 / 316L) |
| Sensor connection | G 1 sealing cone |
| Process connection | welding adapter Ø 50 mm |
| Surface characteristics Ra/Rz of the wetted parts | 0.4 / 4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
