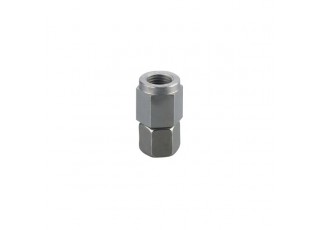

E30463 Screw-in adapter for process sensors ADAPT PX G1/4 I - Dichtkegel L8
- Brand:IFM ELECTRONIC
- Product Code: E30463
- Availability: Out Of Stock
- Suitable for mounting on pipes or even surfaces
- High pressure rating
- Corrosion-resistant Zn-Ni coating
Application
| Application | oil hydraulics applications; Enables orientation of the sensor |
|---|---|
| Installation | for pipe mounting; (Conduit adapter M14 x 1,5 required) |
| Pressure rating [bar] | 315 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 60 |
|---|---|
| Materials | steel (1.0718 / 12L13); stainless steel (1.4305 / 303); steel (1.0216); FKM; Zn-Ni coating |
| Sensor connection | G 1/4 external thread |
| Process connection | threaded connection M14 x 1,5 internal thread taper seal:L8 |
| Sealing | double-edge sealing ring |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30463-00 — 16.04.2019 —
