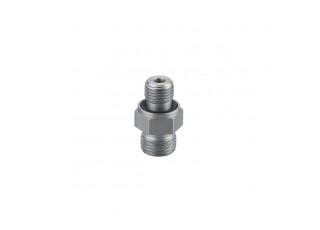

E30460 Screw-in adapter for process sensors ADAPT PX M16 x 1,5 - G1/4 A
- Brand:IFM ELECTRONIC
- Product Code: E30460
- Availability: Out Of Stock
- Enables mounting of progressive ring fitting adapters on even surfaces
- Enables orientation of the sensor
- High pressure rating
- Corrosion-resistant Zn-Ni coating
Application
| Application | oil hydraulics applications |
|---|---|
| Installation | for mounting on an even surface; (for installation with E30464) |
| Pressure rating [bar] | 800 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 42 |
|---|---|
| Materials | steel (1.0718 / 12L13); FKM; Zn-Ni coating |
| Sensor connection | M16 x 1,5 for progressive ring adapter; taper seal:S8 |
| Process connection | threaded connection G 1/4 external thread |
Remarks
| Pack quantity | 1 pcs. |
|---|
