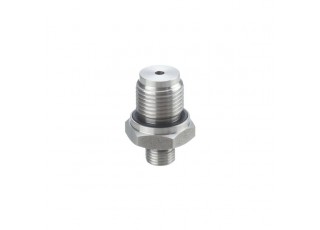

E30450 Screw-in adapter for process sensors ADAPT G1/4A-G1/2A V2A
- Brand:IFM ELECTRONIC
- Product Code: E30450
- Availability: Out Of Stock
- For the installation of process sensors in containers and pipes
- Easy, quick and secure mounting
- Use in industrial and mobile hydraulics
- Stable fixing by screwing in
- High pressure rating
Application
| Medium temperature [°C] | -40...130 |
|---|---|
| Pressure rating [bar] | 1000 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 102.5 |
|---|---|
| Materials | stainless steel (1.4305 / 303); Sealing: EPDM |
| Sensor connection | G 1/4 |
| Process connection | threaded connection G 1/2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30450-00 — 11.12.2018 —
