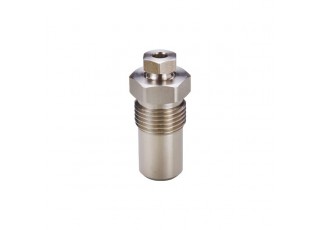

E30144 - efector600-G 1/2″ KLEMVERSCHRAUBUNG
- Brand:IFM ELECTRONIC
- Product Code: E30144
- Availability: Out Of Stock
- For the installation of temperature sensors in containers and pipes
- Easy, quick and secure mounting
- Stable fixing by screwing in
- Use in liquids and gases
- Easy adjustment of the immersion depth of the sensor
Application
| Application | hygienic systems |
|---|---|
| Installation | Clamp fitting |
| Recommended media | viscous media and liquids with suspended particles |
| Pressure rating [bar] | 10 |
| No dead space | yes |
Operating conditions
| Ambient temperature [°C] | -10...150 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 102.8 |
|---|---|
| Materials | stainless steel (1.4404 / 316L); clamping ring: PEEK |
| Tightening torque [Nm] | < 10 |
| Sensor connection | Ø 6 mm |
| Process connection | threaded connection G 1/2 sealing cone |
| Surface characteristics Ra/Rz of the wetted parts | Ra: < 0.8 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30144-00 — 21.10.2014 —
