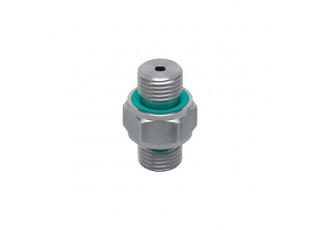

E30143 - efector500-ADAPT PX G1/4A-G1/4A V4A
- Brand:IFM ELECTRONIC
- Product Code: E30143
- Availability: Out Of Stock
- For the installation of pressure sensors in containers and pipes
- Easy, quick and secure mounting
- Use in industrial and mobile hydraulics
- High pressure rating
- Stable fixing by screwing in
Application
| Pressure rating [bar] | 800 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 44.2 |
|---|---|
| Materials | Adapter: stainless steel (1.4404 / 316L); Gasket: FKM |
| Sensor connection | G 1/4 external thread |
| Process connection | threaded connection G 1/4 external thread DIN EN ISO 1179-2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
