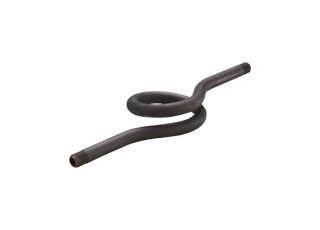

E30140 - efector500-SIPHON TUBE G1/4
- Brand:IFM ELECTRONIC
- Product Code: E30140
- Availability: Out Of Stock
- Reliable protection against pressure peaks
- Efficient protection against too much heat
Application
| Application | for industrial applications |
|---|---|
| Media | liquids and gases |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 359.3 |
|---|---|
| Materials | steel (1.0345) |
| Sensor connection | G 1/4 |
| Process connection | G 1/4 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
| Operating pressure |
|
|---|
Other data
medium: water, ambient temperature: 25 °C
| medium temperature in front of siphon °C | medium temperature behind siphon °C |
| 85 | 35 |
| 150 | 50 |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30140-00 — 11.06.2014 —
