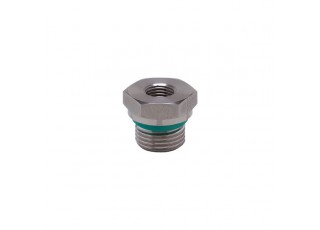

E30135 - efector500-ADAPT G1/4 I - G1/2 A
- Brand:IFM ELECTRONIC
- Product Code: E30135
- Availability: Out Of Stock
- For the installation of pressure sensors in containers and pipes
- Easy, quick and secure mounting
- Use in industrial and mobile hydraulics
- High pressure rating
- Stable fixing by screwing in
Application
| Pressure rating [bar] | 400 |
|---|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 61.8 |
|---|---|
| Materials | stainless steel (1.4571/316Ti ); Sealing: FKM |
| Sensor connection | G 1/4 external thread |
| Process connection | threaded connection G 1/2 |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30135-00 — 02.04.2013 —
