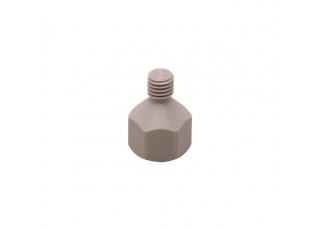

E30132 - efector800-PEEK-ADAPTER
- Brand:IFM ELECTRONIC
- Product Code: E30132
- Availability: Out Of Stock
- Reliable mounting on the machine surface
- For use with non-standard ground
Application
| Design | for vibration sensors VSA001, VSA101, VSA201 |
|---|
Operating conditions
| Ambient temperature [°C] | -30...260 | |
|---|---|---|
| Note on ambient temperature |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 8.2 |
|---|---|
| Dimensions [mm] | M8 |
| Thread designation | M8 |
| Materials | PEEK |
| Process connection | threaded connection |
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30132-01 — 25.08.2014 —
