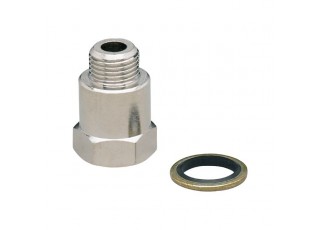

E30075 - efector500-THREAD EXTENSION G1/8
- Brand:IFM ELECTRONIC
- Product Code: E30075
- Availability: Out Of Stock
- For extending the threads of process sensors
- Robust design for use in harsh industrial environments
- Requested sealing ring supplied with the unit
- Stable and secure hold for the sensor
- Quick and easy mounting and fixing
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 56.5 |
|---|---|
| Materials | brass nickel-plated; Sealing: NBR |
| Sensor connection | G 1/8 |
| Process connection | threaded connection G 1/8 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 4 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30075-00 — 20.05.2003 —
