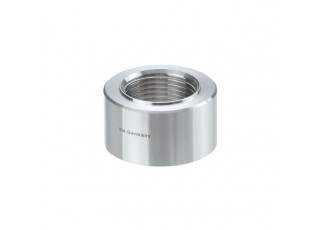

Einschweißadapter für Prozesssensoren E30072 WELDING ADAPT G1 O-RG
- Brand:IFM ELECTRONIC
- Product Code: E30072
- Availability: Out Of Stock
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
- High pressure rating
Application
| Pressure rating [bar] | 150 | |
|---|---|---|
| Note on pressure rating |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 292.5 |
|---|---|
| Materials (wetted parts) | stainless steel (1.4404 / 316L) ; surface characteristics : Ra<0,4 / Rz 4; O-ring: FPM; O-ring: EPDM |
| Sensor connection | G 1 sealing cone |
| Process connection | welding adapter Ø 50 mm |
| Sealing | Gasket |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
