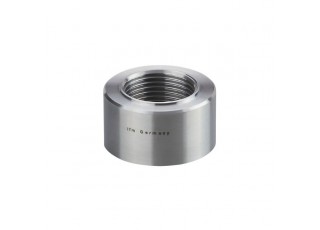

E30060 - efector500-WELDING ADAPT G1 ST52-3
- Brand:IFM ELECTRONIC
- Product Code: E30060
- Availability: Out Of Stock
- Welding adapter for process sensors
- For use in industrial and hygienic applications
- Robust stainless steel design for use in harsh industrial environments
- High pressure rating
Application
| Pressure rating [bar] | 50 | |
|---|---|---|
| Note on pressure rating |
|
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 295.5 |
|---|---|
| Materials (wetted parts) | steel (1.0570 / S355J2) surface characteristics : Ra<0,4 / Rz 4 |
| Sensor connection | G 1 sealing cone |
| Process connection | welding adapter Ø 50 mm |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30060-00 — 14.09.2023 —
