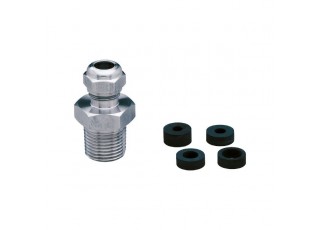

E30025 - efector600-CLAMP FITTING 1/2NPT
- Brand:IFM ELECTRONIC
- Product Code: E30025
- Availability: Out Of Stock
- For the installation of temperature sensors in containers and pipes
- Easy, quick and secure mounting
- Stable fixing by screwing in
- Use in liquids and gases
- Easy adjustment of the immersion depth of the sensor
Application
| Design | for temperature sensors |
|---|---|
| Application | for industrial applications |
| Installation | Clamp fitting |
| Media | liquids and gases |
| Pressure rating [bar] | 1 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Pressure Equipment Directive EAC | The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013. |
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight [g] | 98.4 |
|---|---|
| Materials | stainless steel (1.4305 / 303); FKM |
| Sensor connection | Ø 6 mm / Ø 8 mm / Ø 10 mm |
| Process connection | threaded connection 1/2" NPT |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E30025-00 — 10.11.2014 —
