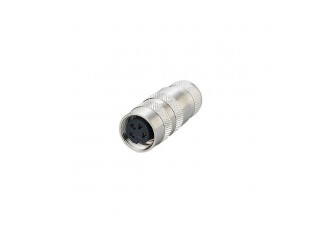

E2M261 Wirable socket WIRABLE SOCKET M16 4P FEMALE
- Brand:IFM ELECTRONIC
- Product Code: E2M261
- Availability: Out Of Stock
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | < 250 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 6 |
Operating conditions
| Ambient temperature [°C] | -30...95 |
|---|---|
| Protection | IP 67 |
| Pollution degree | 1 |
Mechanical data
| Weight [g] | 42.9 |
|---|---|
| Materials | housing: brass nickel-plated; Sealing: PBT |
| Moulded-body material | brass, nickel-plated |
| Sealing material | PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket
| Connection | 4 x 0.75 mm²; Cable sheath: Ø 4.1...7.8 mm |
|---|---|
| Connection | Connector: M16, straight; Moulded body: brass, nickel-plated; Sealing: PBT; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E2M261-00 — 21.02.2020 —
