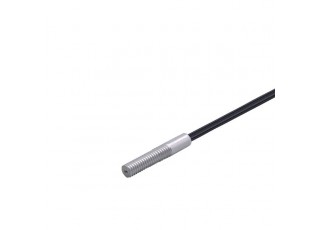

E21106 - efector200-FT-11-EPA-M4/F217X0,06/2M
- Brand:IFM ELECTRONIC
- Product Code: E21106
- Availability: Out Of Stock
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- For cutting to size
- High-flex version for extremely small bending radii
Application
| Function principle | Diffuse reflection sensor |
|---|---|
| Application | Small bending radius |
Detection zone
| Range with fibre optic amplifier type | OB50; OBF; OCF; OO50 |
|---|
| Range fibre optics [mm] | 10 |
|---|
| Range fibre optics [mm] | 10 |
|---|
| Range fibre optics [mm] | 160 |
|---|
| Range fibre optics [mm] | 30 |
|---|
Operating conditions
| Ambient temperature [°C] | -40...60 |
|---|
Mechanical data
| Weight [g] | 33.5 |
|---|---|
| Version of sensing head | straight |
| Sensing head thread | M4 |
| Sensing head length [mm] | 23 |
| Total length [mm] | 2000 |
| Min. bending radius [mm] | 3 |
| Fibre arrangement | |
| Core diameter [mm] | 0.5 |
| Fibre diameter [mm] | 2x 217 x 0.06 |
| External diameter [mm] | 1 |
| Fibre material | PMMA |
| Fibre head material | aluminium |
| Fibre sheath material | PE |
Accessories
| Items supplied |
| |||
|---|---|---|---|---|
| Accessories (optional) |
|
Remarks
| Pack quantity | 1 pcs. |
|---|
