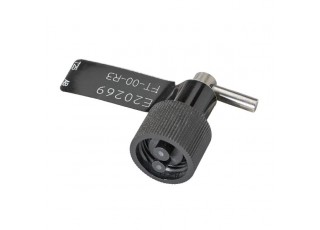

E20269 - efector200-FT-00-R3
- Brand:IFM ELECTRONIC
- Product Code: E20269
- Availability: Out Of Stock
- For installation in places where access is difficult
- Operation as diffuse reflection sensor
- For use at short range
- Angled type for use where space is restricted
- With direct adaptation to the fibre-optic amplifier
Application
| Function principle | Diffuse reflection sensor |
|---|
Detection zone
| Range with fibre optic amplifier type | OKF |
|---|
| Range fibre optics [mm] | 25 |
|---|
Operating conditions
| Ambient temperature [°C] | -20...80 |
|---|
Mechanical data
| Weight [g] | 14 |
|---|---|
| Version of sensing head | angled; with adapter for direct mounting |
| Sensing head diameter [mm] | 3 |
| Total length [mm] | 24 |
| Fibre arrangement | |
| Materials | Lock nut: plastics |
| Fibre material | glass |
| Fibre head material | stainless steel (1.4305 / 303) |
Remarks
| Pack quantity | 1 pcs. |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E20269-00 — 06.03.2003 —
