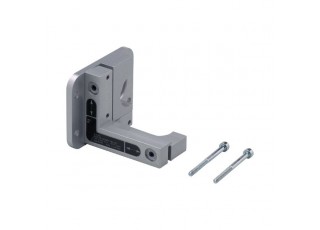

E1D100 - efector200-FINE ADJUSTMENT FOR O1D
- Brand:IFM ELECTRONIC
- Product Code: E1D100
- Availability: Out Of Stock
- User-friendly alignment of the laser beam to a laser receiver or prismatic reflector
- High vibration resistance
- Easy, quick and inexpensive fixing
- Robust design for use in harsh industrial environments
- For mounting to a clamp
Application
| Design | clamp mounting |
|---|
Mechanical data
| Weight [g] | 190.5 |
|---|---|
| Type of mounting | rod or free-standing depending on the clamp |
| Dimensions [mm] | 58 x 75 x 70 |
| Materials | fixture: aluminium uncoloured anodised; plastics: POM; screws: stainless steel |
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
| Installation | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E1D100-00 — 18.09.2007 —
