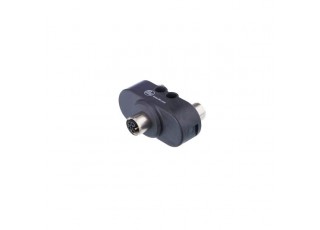

E12787 Y-splitter ZDO2E030MSS0000-00STGE030MSS
- Brand:IFM ELECTRONIC
- Product Code: E12787
- Availability: Out Of Stock
- Resistant to oils and coolants
- Gold-plated contacts for reliable electrical connections
- High protection rating for the requirements of harsh industrial environments
- High power transfer thanks to high current rating
- Actuator supply (UA) branching from the daisy chain power supply
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | actuator supply (UA) branching |
Electrical data
| Operating voltage [V] | < 63 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 16; (40 °C) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight [g] | 99.35 |
|---|---|
| Moulded-body material | PBT |
| Material nut | brass, nickel-plated |
| Sealing material | HNBR |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
Electrical connection - socket
| Connector: 2 x M12; coding: L; Moulded body: PBT, black; Locking: brass, nickel-plated; Sealing: HNBR; Contacts: gold-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12787-00 — 20.06.2023 —
