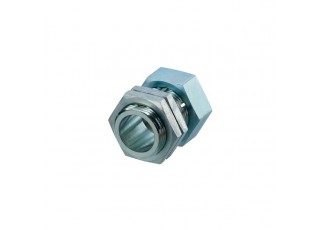

E12739 Mounting sleeve with end stop FIXING/M18/NT/FE/END STOP
- Brand:IFM ELECTRONIC
- Product Code: E12739
- Availability: Out Of Stock
- End stop for defined installation position
- For mounting cylindrical sensors
- Easy and quick replacement without readjustment
- Reliable protection against damage
- Robust design for use in harsh industrial environments
Application
| Design | with end stop |
|---|
Mechanical data
| Weight [g] | 78.9 |
|---|---|
| Installation instruction | align the sensing face of the sensor to the right (see scale drawing) |
| Dimensions [mm] | M24 x 1.5 / L = 34.5 |
| Thread designation | M24 x 1.5 |
| Inside diameter [mm] | 18 |
| Materials | galvanised steel; Nuts: galvanised steel |
| Tightening torque [Nm] | 5; (lock nuts: 40) |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Diagrams and graphs
| Installation | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12739-00 — 17.03.2023 —
