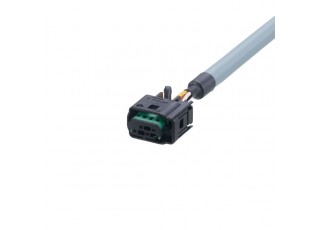

E12736 Connecting cable with AMP connector ecomatPanel/Cable/5m
- Brand:IFM ELECTRONIC
- Product Code: E12736
- Availability: Out Of Stock
Application
| Special feature | Screened cable |
|---|
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Max. current load total [A] | 4 |
Operating conditions
| Ambient temperature [°C] | -40...80 |
|---|---|
| Protection | IP 20; (without resistor) |
Mechanical data
| Weight [g] | 456.4 |
|---|---|
| Dimensions [mm] | 89.5 x 33.4 x 47.3 |
| Materials | housing: PBT-GF20 |
| Moulded-body material | PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 5 m, PUR, grey, Ø 8.3 mm, shielded; 2 x 0.5 mm² (twisted pairs ) + 2 x 0.5 mm² (twisted pairs ) |
|---|---|
| Connection | Connector: AMP MQS, straight; Moulded body: PBT; Contacts: tin-plated |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12736-00 — 05.10.2020 —
