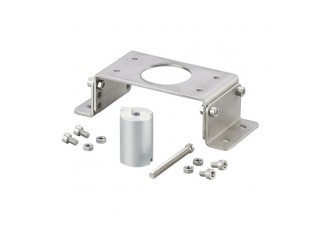

E12674 mounting bracket VALVE BRACKET 20-40MM

E12674 mounting bracket VALVE BRACKET 20-40MM

  • Brand:IFM ELECTRONIC
  • Product Code: E12674
  • Availability: Out Of Stock
Application
Design for mechanical interfaces to pneumatic actuators VDI / VDE 3845
Mechanical data
Weight [g] 471.5
Hole spacing for mounting bracket 80 x 30 / 130 x 30 mm
Shaft height for valve drive 20 / 30 / 40 mm
Suitable for shaft diameters [mm] > 38
Materials mounting bracket: stainless steel (1.4404 / 316L); shaft adapter: aluminium
Accessories
Items supplied
socket head screw: 1 x M6 x 60, stainless steel
socket head screws: 8 x M5 x 8, stainless steel
hexagon nuts: 8 x M5, stainless steel
Remarks
Pack quantity 1 pcs.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — E12674-01 — 21.08.2019 —
